The configuration replacement function can synchronize the configuration of an old or faulty device to a new device of the same model. After the configuration replacement task is complete, the Ruijie JaCS will send the configuration of the old device to the new one when it goes online. In this way, users do not need to manually configure the new device again, helping to improve operation and maintenance efficiency.

Note: Switch configuration replacement can only be performed between switches of the same model.

The specific steps are as follows:

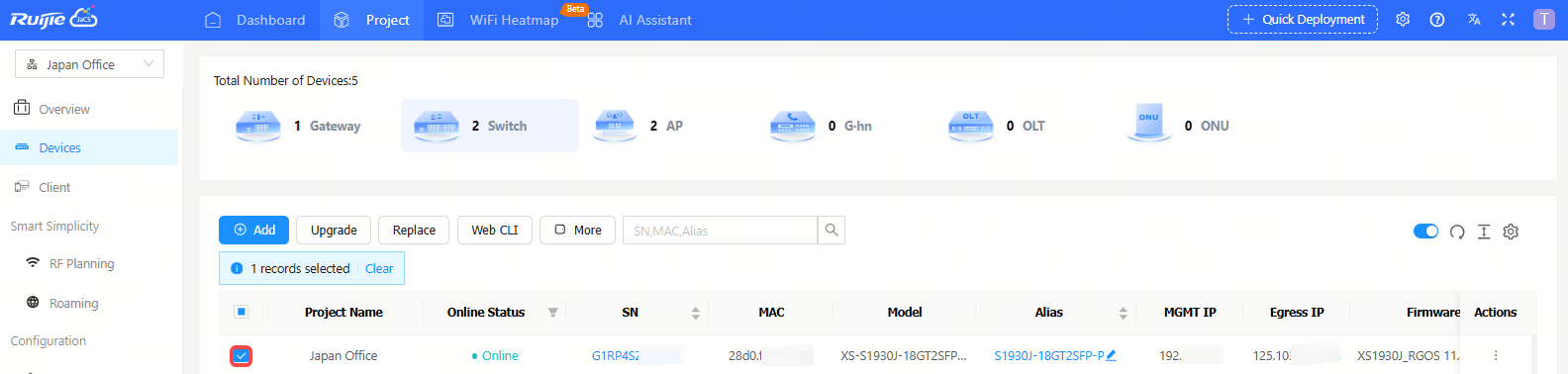

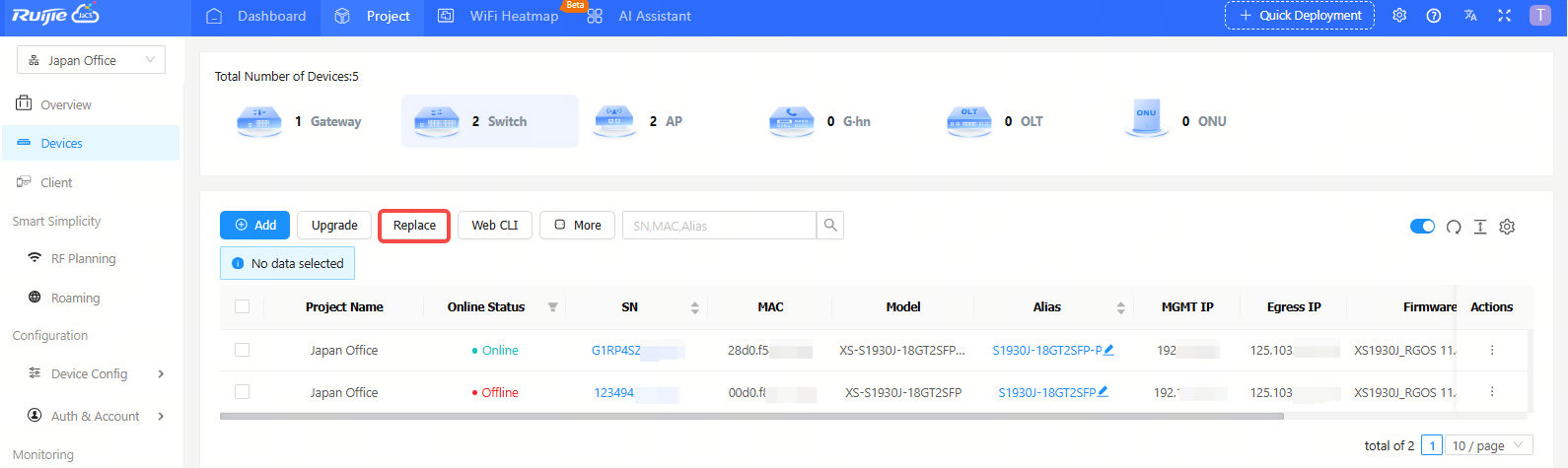

Step 1: Select an existing device and click Replace.

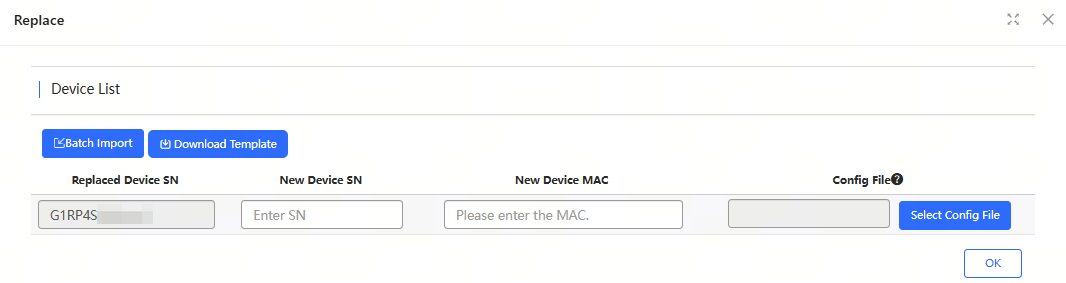

Step 2: Enter the SN and MAC address of the new device. Please make sure that the SN and MAC of the new device match each other.

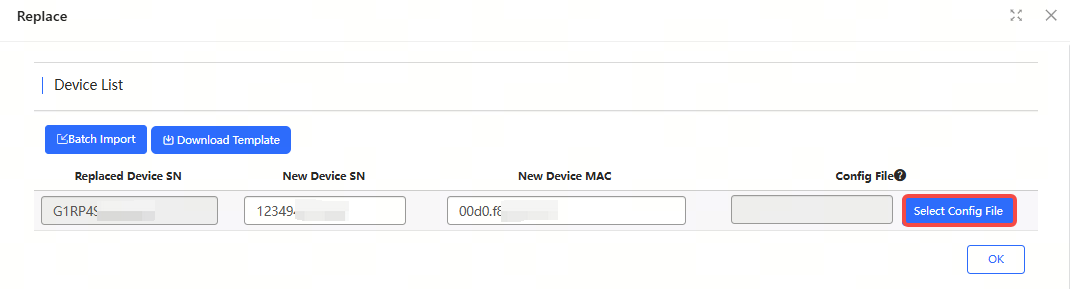

Step 3: Click Select Config File and select the configuration file of the existing device, and then click OK.

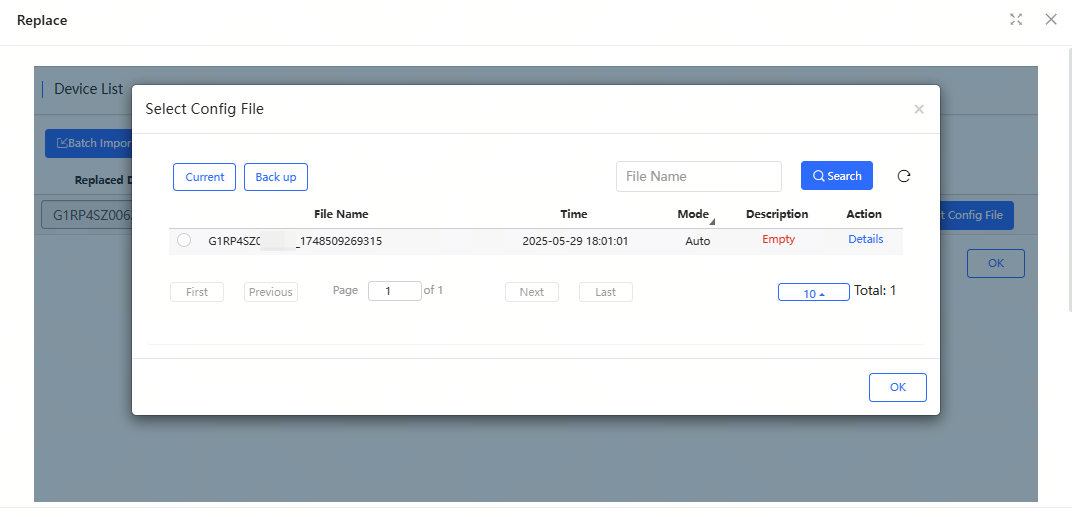

Step 4: Click Current, you can view the current device configuration; click Backup, you can to back up the current device configuration.

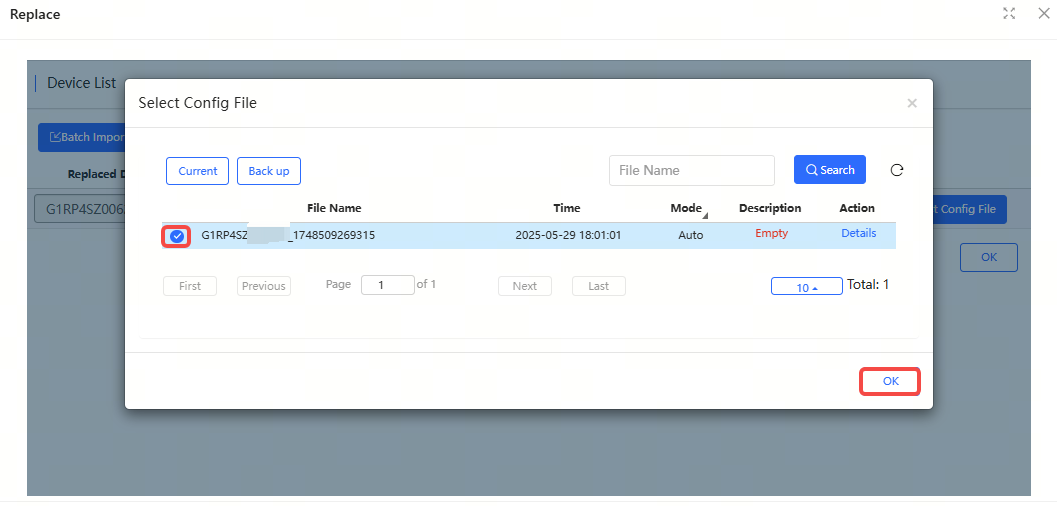

Step 5: After selecting the configuration file, click OK.

Step 6: After the "Submit Succeeded" prompt appears, click X to close the box and complete the operation.

If you need to replace configuration in batches, you can follow the steps below:

Step 1: Click Replace.

Step 2: Click Download Template to download the template.

Step 3: Fill in the template. You can fill in up to 200 items at a time.

• Replaced Device SN: Enter the SN of the existing device.
• New Device SN: Enter the SN of the new device.
• MAC: Enter the MAC address of the new device.

Step 4: Click Batch Import to import the filled template.

Step 5: Select the configuration file for your new switches and click OK.

Step 6: After the "Submit Succeeded" prompt appears, click X to complete the operation.
